Permanent Magnet Gearless Traction

Precision power for vertical mobility.

Permanent magnet gearless traction machines engineered for reliable, energy-efficient elevator performance.

Designed to international standards. Built through global manufacturing partnerships. Scaled for the next generation of buildings.

Explore Products → Partner With Us →

544kg

Maximum capacity

2500kg

Static shaft load

Class F

Insulation rating

IP41

Protection class

WTD2-P · Permanent Magnet Gearless

About Aston

Built on engineering discipline, not trading.

Aston is focused on one core system: gearless traction. Every machine is selected, configured, and tested against defined specifications before it ships.

Our machines are developed through established manufacturing partners in Asia, built to defined specifications, and controlled under consistent quality benchmarks. Each unit is configured for the load profile it serves and tested before release.

Today, we ship a focused product line — the WTD2-P permanent magnet gearless platform — engineered to deliver three things: stable performance across the operating envelope, low vibration and noise in real installations, and long operational life under continuous duty.

We are building toward localized manufacturing in India, with the goal of delivering globally competitive traction systems with tighter control over quality, lead time, and cost — and a stronger platform to serve the next decade of regional infrastructure.

Engineering focus

Traction systems designed for real-world elevator duty cycles, not catalog specifications.

Controlled sourcing

Manufactured through vetted facilities with defined quality standards and inspection protocols.

Scalable platform

Architecture built to expand into full elevator drive systems and controls.

Product

Gearless traction machine.

A focused product line built around a single permanent magnet gearless platform — engineered for residential and small commercial elevator applications, available in two configurations.

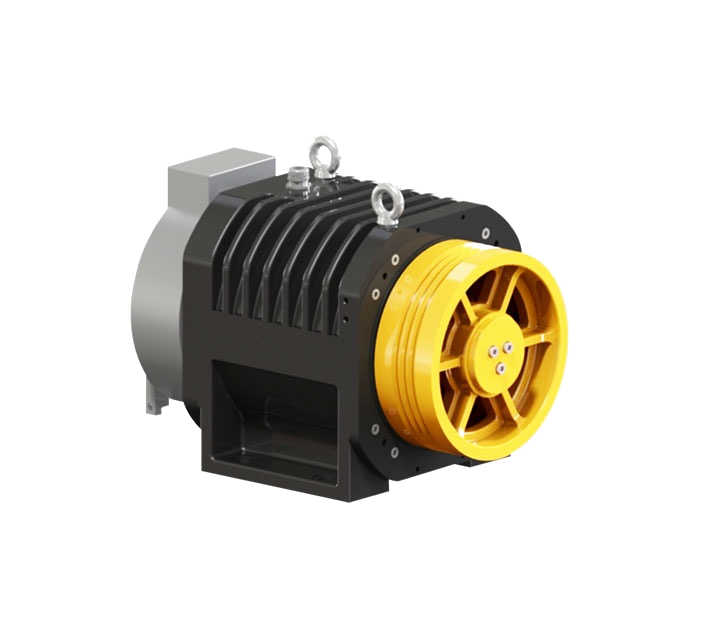

Reference unit · WTD2-P

WTD2-P Series

Permanent Magnet Gearless Traction Machine

A compact, permanent magnet synchronous machine designed for residential and small commercial elevators. Two configurations sharing a common Ø320 mm sheave platform.

Request full datasheet →

Available Models · Engineering Outline & Specifications

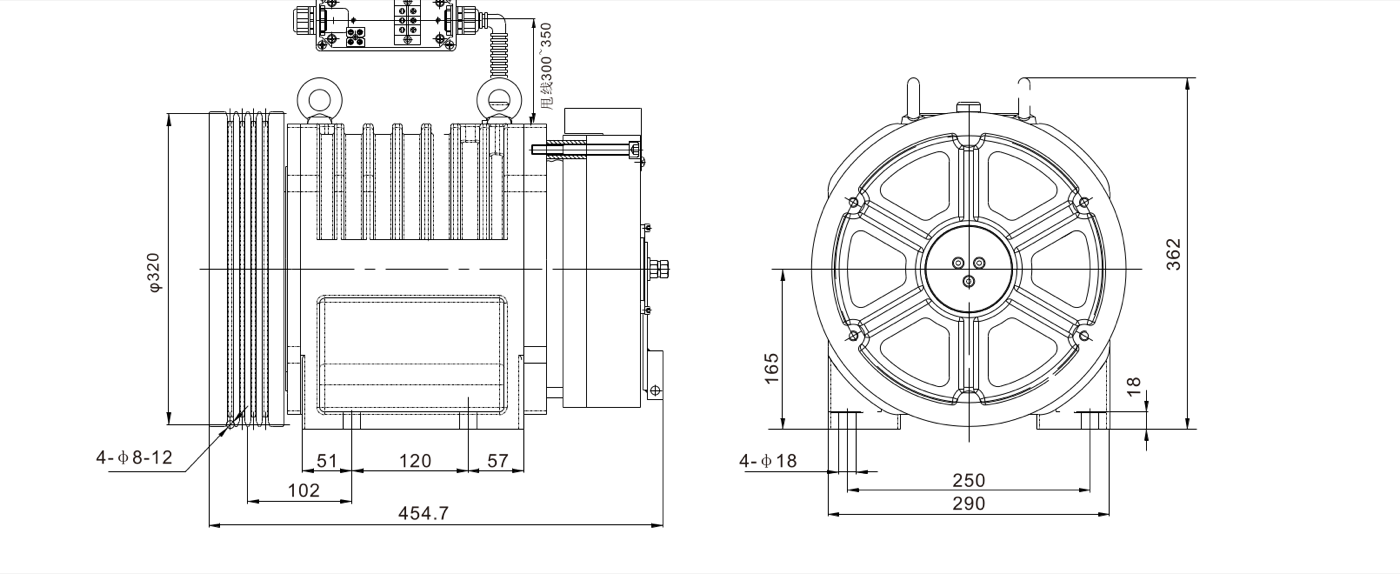

WTD2-P400-100D

400 / 408 kg · 1.0 m/s

Electrical

Rated power2.7 kW

Rated current8 A

Rated speed119 rpm

Frequency19.9 Hz

Rated torque217 N·m

Poles20

Mechanical

Net weight140 kg

Total length454.7 mm

Overall height362 mm

Mounting height165 mm

Mounting holes4 × Ø18 @ 250 mm

SheaveØ 320 mm

Datasheet · PDF · A4 · 1 page Download datasheet

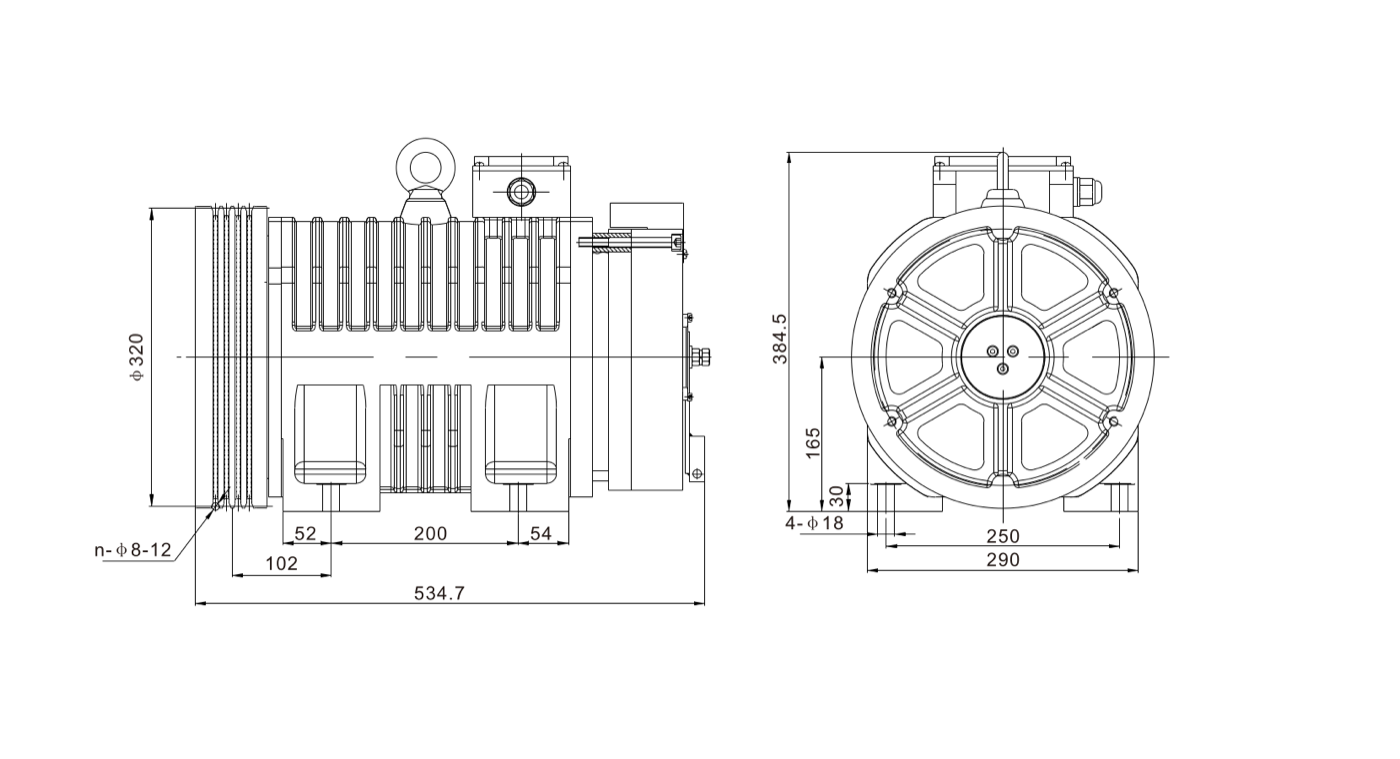

WTD2-P544-100D

544 kg · 1.0 m/s

Electrical

Rated power3.6 kW

Rated current10 A

Rated speed119 rpm

Frequency19.9 Hz

Rated torque290 N·m

Poles20

Mechanical

Net weight200 kg

Total length534.7 mm

Overall height384.5 mm

Mounting height165 mm

Mounting holes4 × Ø18 @ 250 mm

SheaveØ 320 mm

Datasheet · PDF · A4 · 1 page Download datasheet

Common Specifications

Rated voltage

AC 380 V · 50/60 Hz

Brake voltage

DC 110 V · single coil

Static shaft load

2500 kg

Duty cycle

S5 – 40%

Roping

4 × Ø8 × 12 · ratio 2:1

Groove profile

Undercut U · β=90° γ=30°

Motor type

PM synchronous · 20-pole

Wrap

Single

Insulation / Protection

Class F · IP41

Travelling height

≤ 90 m

Engineering

Designed for performance and longevity.

Every Aston traction system is built around four operating principles: efficiency, thermal stability, acoustic control, and mechanical reliability under continuous duty.

Permanent magnet architecture

NdFeB magnetic poles deliver high efficiency with reduced energy consumption and improved torque characteristics across the operating range.

Precision sheave design

Optimized groove geometry for rope life and traction stability under varied load and acceleration profiles.

Thermal management

Designed to maintain performance under continuous duty cycles, with Class F insulation rated for tropical service conditions.

Low-noise operation

Engineered for smooth rotation and reduced vibration in real installations, supporting acoustic targets in occupied buildings.

Global Presence

Built globally. Expanding locally.

Aston operates through a global supply chain with manufacturing partners in Asia, ensuring consistent product availability and competitive pricing. Our next phase establishes manufacturing capability in India.

Active

Asia Manufacturing Partnership

China · Operational

Production runs through vetted manufacturing facilities aligned with Aston specifications and inspection protocols. Every shipment is configured, tested, and quality-controlled before release under Aston accountability.

Function

Manufacturing & QC

Status

Currently shipping

Planned

India Manufacturing

India · Roadmap

Localized manufacturing in India is the next phase of the platform, focused on tighter control over quality, lead time, and cost — and on supporting the long-term growth of regional infrastructure demand.

Function

Manufacturing & engineering

Status

In planning

Forward Direction

Building the next layer of elevator systems.

Aston is focused on expanding beyond traction machines into a broader ecosystem of elevator components — with the goal of becoming a reliable system supplier for modern elevator companies.

Current

Gearless traction systems

Full range of permanent magnet machines for passenger and heavy-duty elevator applications.

Near-term

India manufacturing

Localized production for tighter control over quality, lead time, and supply consistency.

Mid-term

Drive & control systems

Integrated traction-and-drive solutions, expanding Aston's role from component to subsystem supplier.

Partnership

Partner with Aston.

We work with elevator companies, installers, and distributors looking for reliable traction solutions. For product details, pricing, or technical discussions, reach out to our team.

Every inquiry is reviewed by our technical commercial team. We will share specifications, lead times, and pricing scoped to your geography and order profile.
